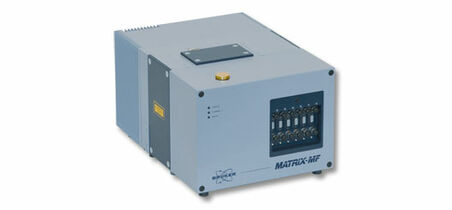

FT-IR model: MF-MATRIX

The MATRIX-MF is the mid-infrared (FT-IR) version of the award winning MATRIX process spectrometers series. MATRIX-MF is a rugged and a compact spectrometer that can be fiber optically coupled to measure chemical reactions in laboratory and/or process environments.

The MATRIX-MF expands the proven MATRIX series product line utilizing the information rich mid-IR region for use in both laboratory and process environments. The MATRIX-MF is a process ready FT-IR spectrometer that is ideal for real-time monitoring and analysis of chemical and biological reactions.

The MATRIX series’ award winning design protects the optics in a dedicated sealed compartment. The permanently aligned RockSolid™ interferometer and Digitect detector electronics ensure high quality spectra, even in the harshest environments. Although the instrument is designed for a process environment, its small footprint can also make it an ideal instrument for laboratory-based applications. The spectrometer has 10 years warranty on the moving parts of the interferometer.

The combination of the ATR (attenuated total reflection) sampling technique and the light guiding fiber optics enhances the use of infrared spectroscopy. Fiber optic probes enable in-situ measurements, which helps fully utilize the benefits of the information rich midIR spectroscopy.

A wide range of probe adaptations, including Bruker’s patented IN350-T diamond ATR probe, can be attached to the unit for in-situ analysis. Patented IN350-T combines a two reflection diamond ATR probe head with the excellent performance of MIR-silver halide fibers.

The MATRIX-MF offers Bruker’s proprietary quick connector design (BQC) ensuring easy and reproducible fiber optic probe exchange, providing reproducible results. Utilizing the automated built-in multiplexer up to 6 reactions can be monitored by a single instrument.

The MATRIX-MF can be used as a standalone system in your lab. Its small footprint allows it to fit into standard 19 inch racks in process enclosures. The system can be controlled by wide range of industry standard communication protocols and interfaces (such as 4-20 mA, OPC, Modbus, Profibus DP etc.) which makes integration into a process system simple.

The OPUS Validation Program (OVP) can execute a series of performance tests utilizing the built-in automated filter wheel. The hardware performance and the consumables are monitored to determine the operation within desired specifications. The MATRIX series is designed for reliability and easy maintenance; individual consumable components are on pre-aligned mounts and can be quickly exchanged by the user without any realignment of the optics.
